When threats demand instant, adaptable protection, JOESCO’s HESCO barrier walls deliver unmatched durability and rapid deployment, proven in combat zones and disaster responses globally. As a patented manufacturer supplying NATO forces and flood agencies, we engineer walls that withstand bullets, blasts, and hydraulic pressure while reducing costs by 80% vs. concrete. This guide details technical specifications, installation protocols, and procurement options for government buyers and contractors.
Core Engineering: Materials Defining Barrier Wall Superiority
JOESCO’s hesco barrier walls leverage militarized materials for multi-threat resilience
- Galvanized Steel Mesh Framework
- Wire Diameter: 4mm–5mm with ZM-aluminum coating for 20-year corrosion resistance.
- Cell Geometry: 76×76mm (3″×3″) hexagonal apertures optimize soil retention under ballistic or hydraulic stress.
- Geotextile Liner
- Composition: Non-woven UV-stabilized polypropylene.
- Function: Filters water while preventing soil erosion during floods or explosions.

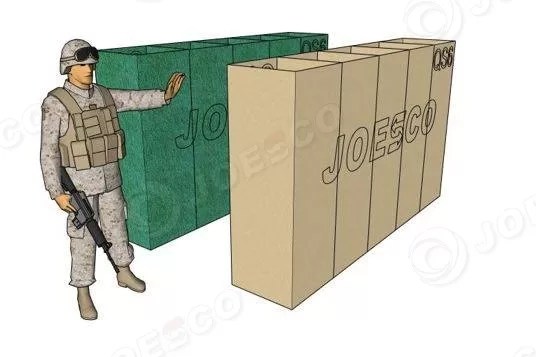

- Modular Design
- Standard Heights: 0.61m, 1m, 2.13m (stackable to 4m for RPG zones or high levees).
- Custom Sizes: Curved walls for irregular perimeters or bridge abutments.
“Unlike rigid concrete, HESCO walls absorb energy through dynamic soil compaction—redirecting blast waves and flood currents laterally.” – JOESCO Engineering Team
Performance Metrics: Validated in Combat and Disasters
Third-party testing confirms dominance over traditional solutions
| Threat Type | JOESCO Barrier Wall | Concrete/Sandbag Equivalent |
|---|---|---|
| Ballistic Resistance | Stops 7.62mm rounds | Equivalent |
| Blast Overpressure | 15 psi (IED standard) | Fails at 10 psi |
| Flood Current | Holds at 3.5m/s velocity | Collapses at 1.8m/s |
| Vehicular Impact | Stops 7-ton truck at 50km/h | Fails beyond 30km/h |
| Deployment Speed | 100m wall in 18 minutes | 48+ hours (sandbags) |
Key technologies enabling performance:
- Lateral Load Distribution: Hexagonal cells dissipate pressure across the wall surface
- On-Site Adaptability: Fill with local soil/sand (1.8–2.0 g/cm³ density) for instant stability.
- Stackable Redundancy: Double-layered units prevent single-point failure.
Critical Applications: Where Barrier Walls Excel

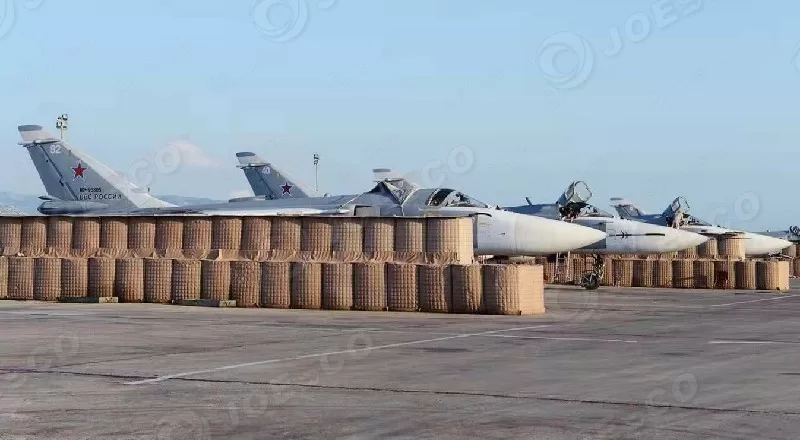

- Military Bases:
- Perimeter security against bullets and vehicle ramming.
- Blast shields for ammunition depots (tested against 301kg car bombs)
- Flood Control:
- Emergency levees for river surges >3m/s (deployed in 10,700m during Hurricane Katrina).
- Sewage overflow containment with chemical-resistant liners.
- Critical Infrastructure:
- Pipeline protection and construction site safety.
- Crowd control barriers for high-risk events.
Rapid Installation Protocol
Maximize wall integrity in crises
- Site Preparation:
- Clear debris; ensure ground slope ≤5°.
- Mark alignment with 10% overlap for curved walls.
- Assembly & Interlocking:
- Unfold units; connect via steel hooks (≤5mm gap tolerance).
- Anchor ends with ground stakes in soft soil.
- Mechanized Filling:
- Compact sandy fill (70% sand, 30% silt) in 15cm layers at 25% moisture.
- Minimum height: 0.5m above predicted threat level.
- Reinforcement:
- Add razor wire for anti-climbing or sandbags for fragmentation control.
Pro Tip: Pre-stage folded units in high-risk zones—withstand 5-year outdoor storage without degradation.
Bulk Procurement & Global Logistics
Government and wholesale buyers gain advantages
- Volume Discounts: 15–30% savings on 500+ unit orders.
- Rapid Shipping: Folded walls occupy 80% less space (1 pallet = 150 linear ft).
- 10-Year Warranty: Covers corrosion and seam integrity.
- Custom Kits: Include stakes, repair clips, and geotextile patches.
How to Order:
- Submit project specs (length, height, threat type) via www.militarybarrier.com.
- Consult engineers for threat-specific configurations.
- Receive production in 7–14 days with global container shipping.
