JOESCO hesco Barrier QS9 – Versatile 6-Cell Barrier for Flexible Perimeter Security & Erosion Control

2025-10-14

Product Overview

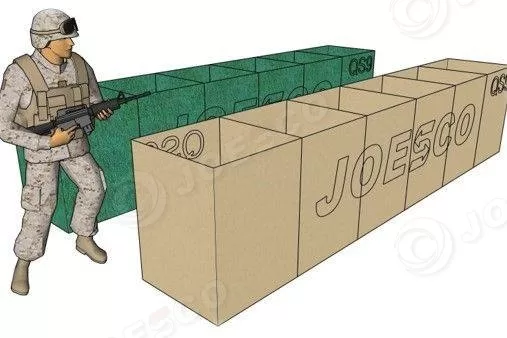

The JOESCO QS9 hesco barrier is engineered for scenarios requiring a balance of modular flexibility and robust protection. With dimensions of 1.0 meter in height, 0.75 meters in width, and 4.50 meters in length, this 6-cell unit is designed to adapt to constrained or irregular terrain while maintaining structural integrity. Constructed from Galfan-coated steel mesh and a heavy-duty polypropylene geotextile liner, the QS9 can be rapidly filled with on-site materials such as sand, gravel, or crushed rock. Its narrower width (0.75m) allows for deployment in areas where space is limited, such as urban checkpoints, winding riverbanks, or steep slopes, without compromising on defensive capability .

Key Features & Advantages

Adaptable Design for Tight Spaces

The 0.75m width enables installation in confined areas where standard barriers cannot fit, while the 6-cell configuration ensures stability across a 4.5m span. This makes it ideal for curved perimeters or uneven ground .
Rapid Deployment

A 2-person crew can deploy 100 meters of barrier in under 4 hours using standard excavation equipment. Pre-assembled spiral connectors simplify alignment and interlocking .
Multi-Threat Resilience
- Blast Mitigation: Withstands overpressure up to 10 PSI when filled with compacted sand-gravel mix.
- Erosion Control: Effective for slope stabilization and riverbank protection, resisting water currents up to 2.5m/s.
- Vehicle Restriction: Stops 2.5-ton vehicles at 40km/h, suitable for urban security zones .

Primary Applications

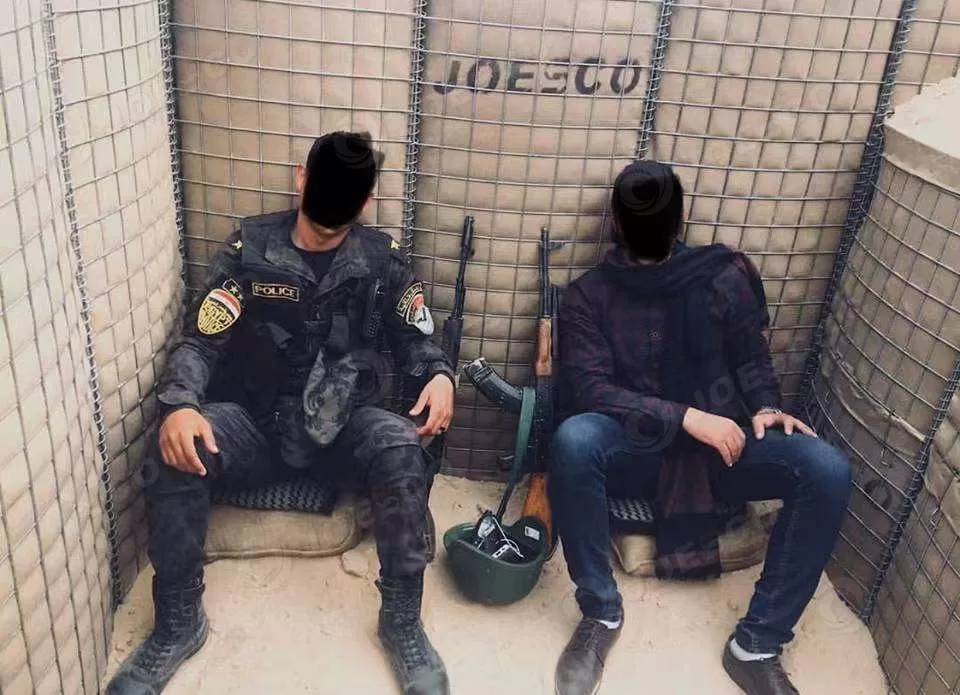

Military Perimeter Security: Used for creating flexible defensive lines in forward operating bases (FOBs) or checkpoints, especially where terrain limits larger barriers.
Slope & Riverbank Stabilization: Terraced configurations prevent soil erosion on inclines or coastal edges. The narrower profile allows for precise placement along curved landscapes.
Construction & Industrial Sites: Secures work zones in tight urban environments, containing debris and controlling access without obstructing adjacent areas .

Technical Specifications

Parameter	Details
Dimensions (HxWxL)	1.0m x 0.75m x 4.50m
Cell Configuration	6 cells/set
Fill Volume	3.38 m³ per unit
Material	Galfan-coated steel (4–5mm wire) + polypropylene geotextile
Stacking Capacity	Up to 3 layers (3.0m total height)

Why Choose the QS9?

The QS9’s 0.75-meter width provides unique advantages in flexibility and space efficiency. It can be deployed in areas where wider barriers are impractical, such as urban environments or winding natural landscapes, without sacrificing protection. Its 6-cell design distributes load evenly, maintaining stability even on uneven ground. Additionally, the barrier can be stacked or arranged in curves to fit complex terrain requirements .

Comparison with Other Models

Metric	QS9 (0.75m W)	Standard 1m-Wide Barrier
Space Efficiency	25% narrower footprint	Baseline
Flexibility	Fits tight/curved spaces	Limited by wider base
Deployment Speed	Faster in constrained areas	Slower in complex terrain

How to Deploy the QS9

Site Preparation: Clear debris and level the ground. On slopes >15°, anchor the first unit to bedrock.
Unfold and Connect: Expand barriers and link them using spiral connectors. Ensure gaps are <5mm.
Filling: Use local fill material—sand for ballistic protection, gravel for drainage. Compact in 30cm layers.

Pro Tip: For erosion control, use angular stones (20–40mm) to enhance interlocking and barrier longevity .
